XHD50

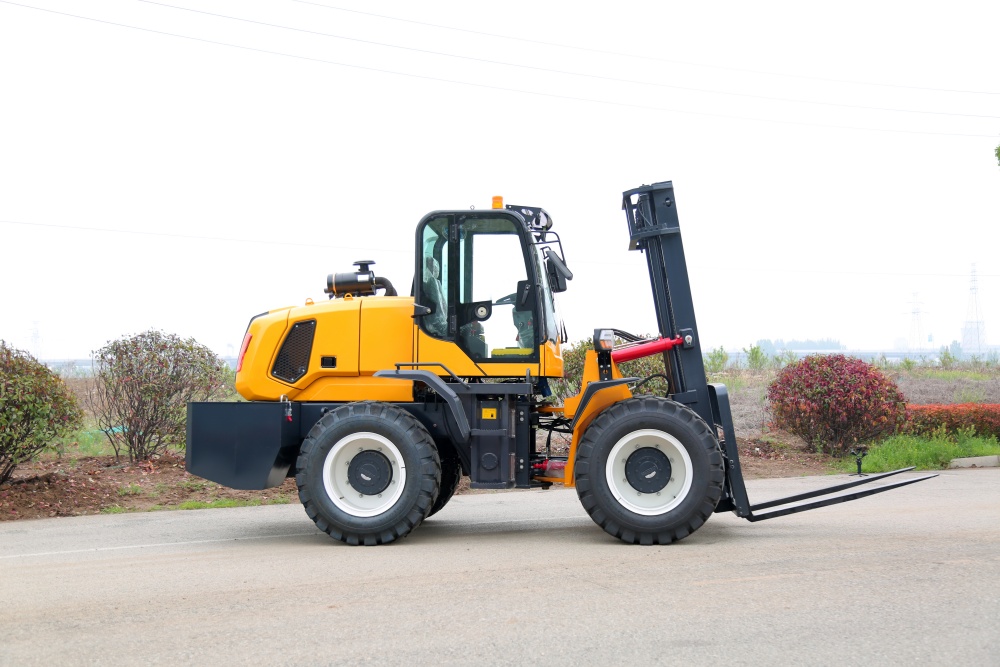

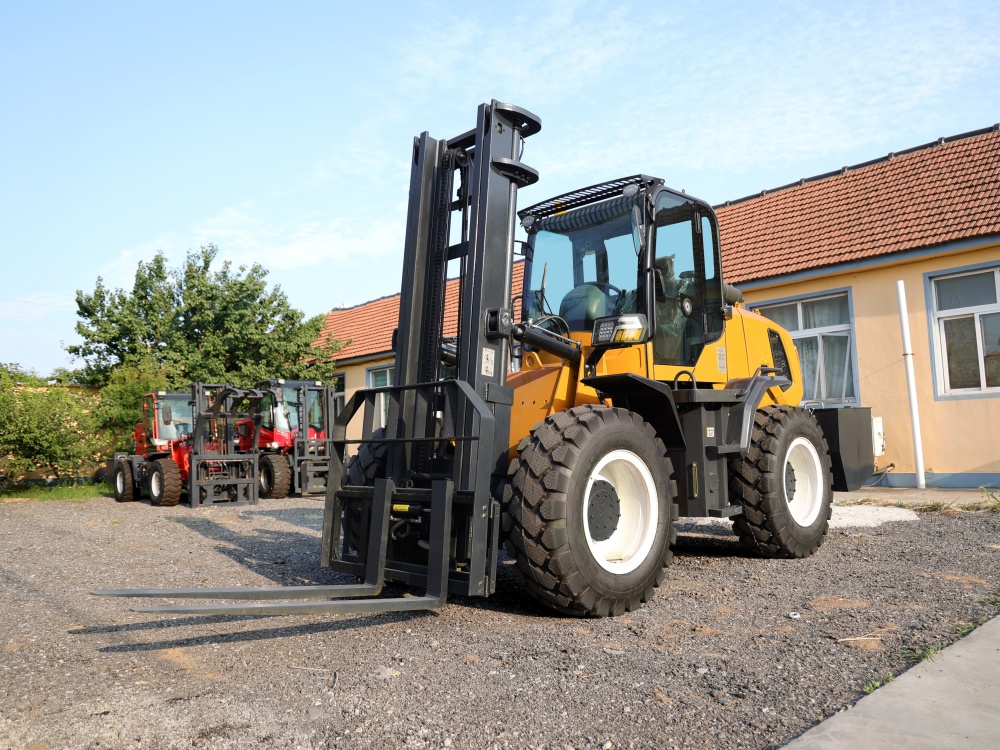

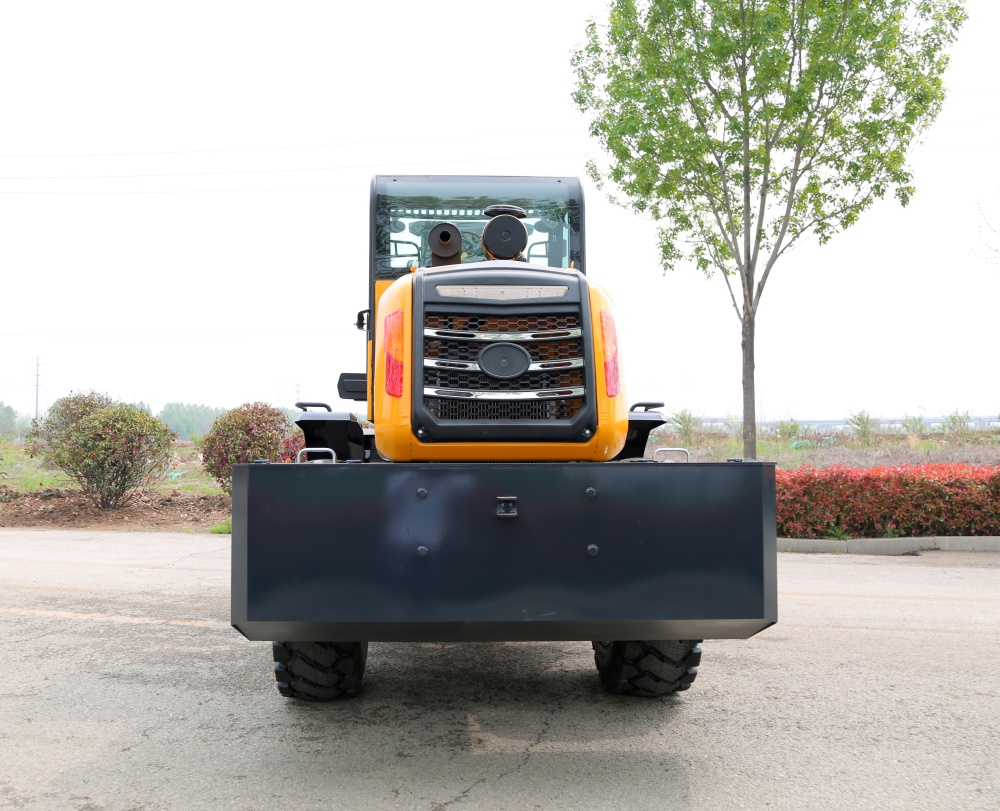

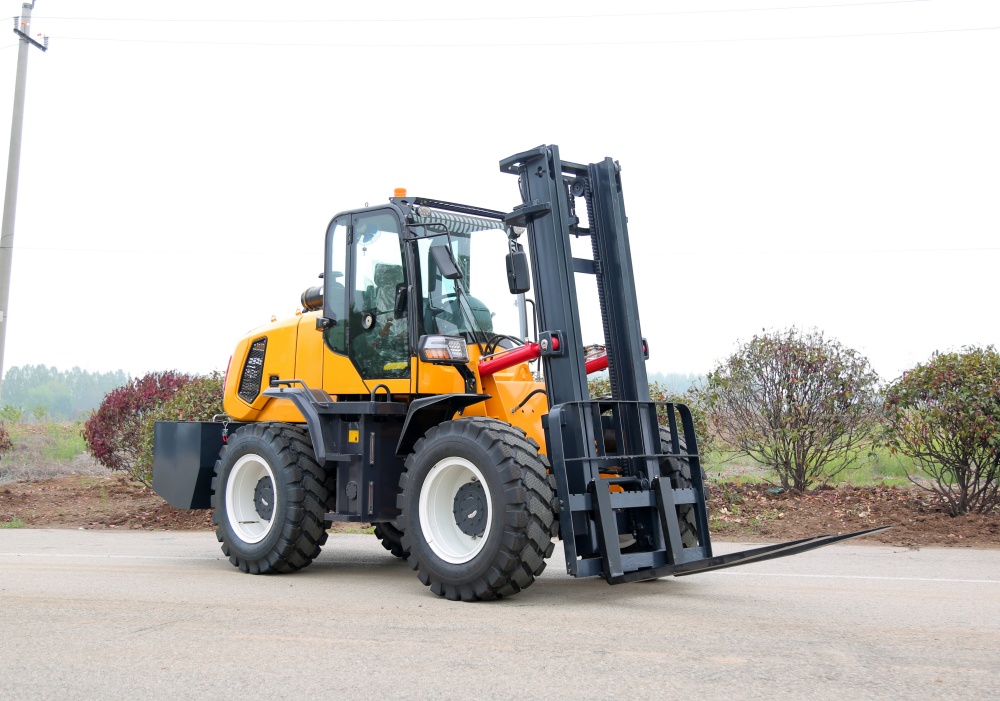

5 TON 4WD ARTICULATED ALL-TERRAIN FORKLIFT
Everything in the Standard Machine & Implements Package:
| Rated Lifting Weight | 5000KG |
| Rated Lifting Height | 4500mm |
| Fuel Type | Diesel |
-
Easy to Operate in a Small Space
- All-Terrain Rubber Tyres
- 4WD
- Side Shiffork Adjustment
- Double High And Low Speeds Torque Convertor
- 3 Stage Container Mast
- 1 Year / 1000 Hours Warranty
- Australian-Backed Parts Support
- Extended Warranty Options Available for 2 /3 Years
Price: $36,990.00 Incl. GST
Dealer Costs not Included and May Vary.
Product Parameters
| Rated Lifting Weight | 5000KG |
| Rated Lifting Height | 4500mm |
| Fuel Type | Diesel |
| Turning Radius | 4500mm |
| Front end Clearance | 300-380mm |
| Wheelbase Center Ground Clearance | 350mm |
| Climbing Angle | <35° |
| Engine Type | YUNNEI (76KW) |
| Driving Mode | Four-wheel drive |
| Transmission Model | 280 Dual high and low speeds Torque converter |
| Axle Type | Big wheel Side bridge |
| Tyre Type | 16/70-20 Tires |
| Frame Width | 1800mm |
| Frame | Hinged thickness 350 mm |
| Fork Length | 1520 mm (optional) |
| Machine Weight | 5500 KG |
| Overall Size | 4400*1900*2900mm |
All-Terrain Forklift are engineering vehicles that can safely and efficiently carry out loading, unloading, stacking, and handling operations on slopes and uneven surfaces.
