XHD35

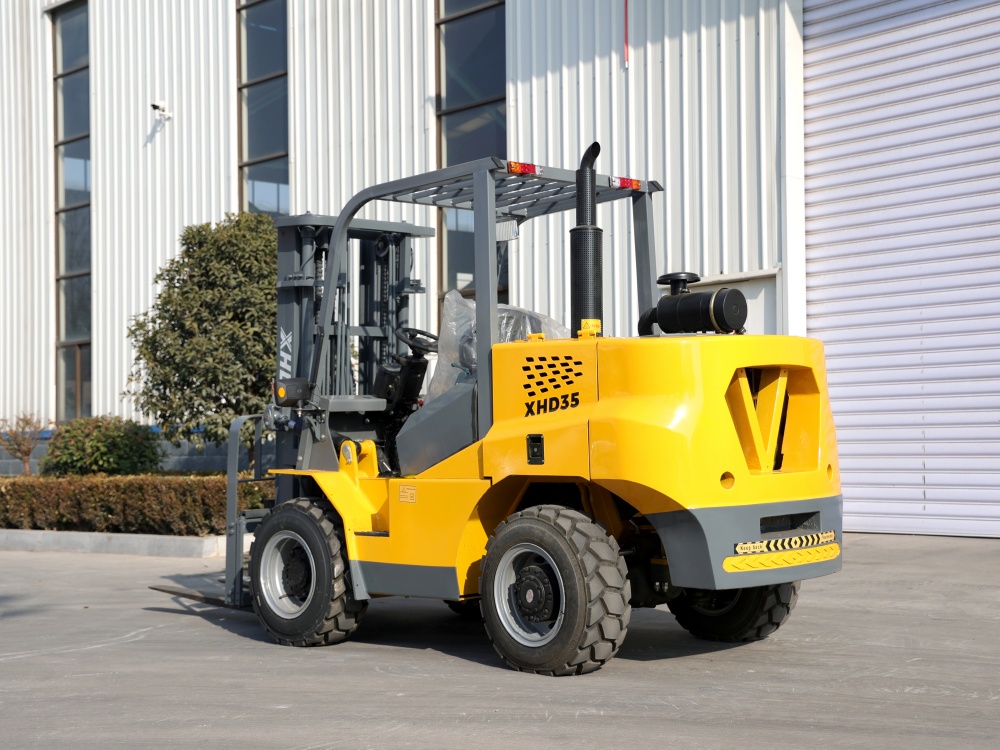

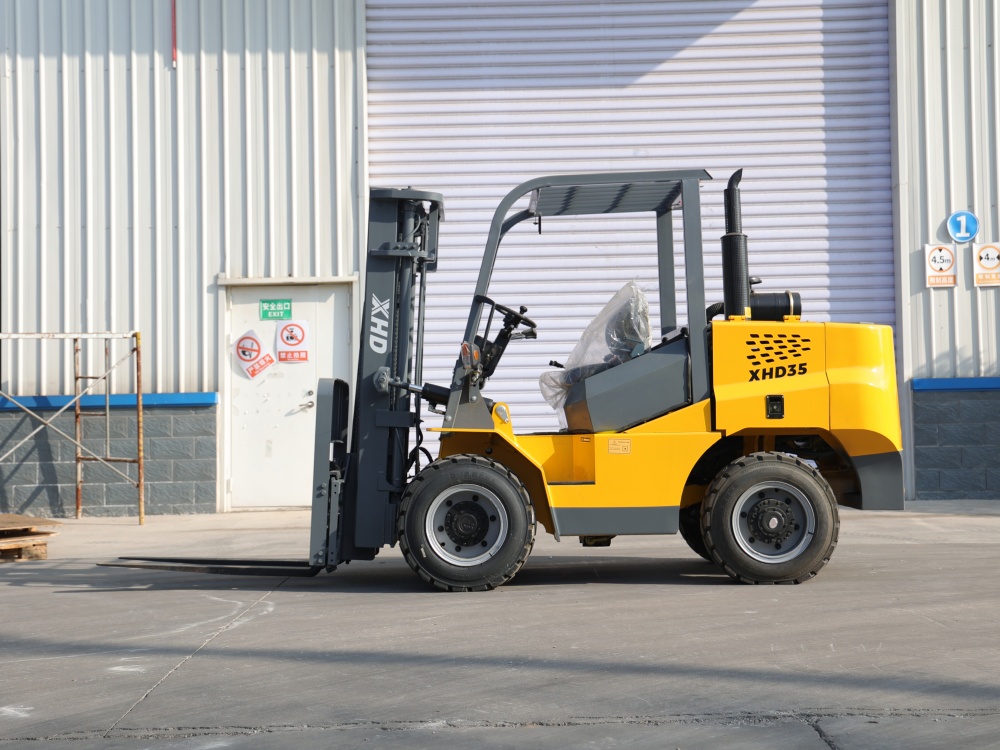

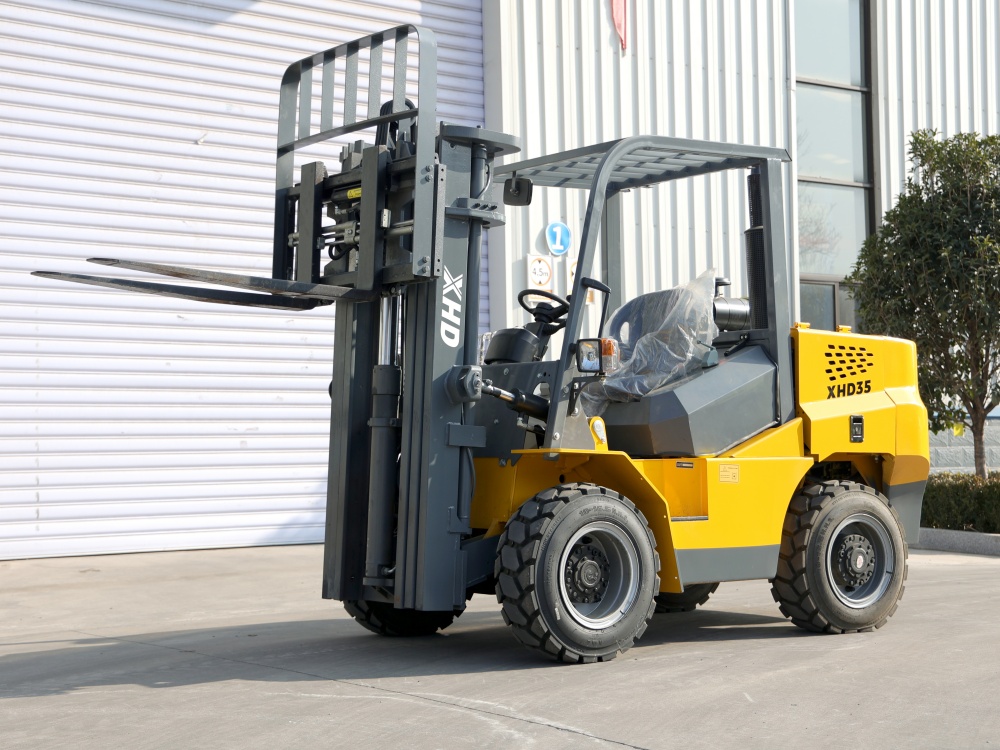

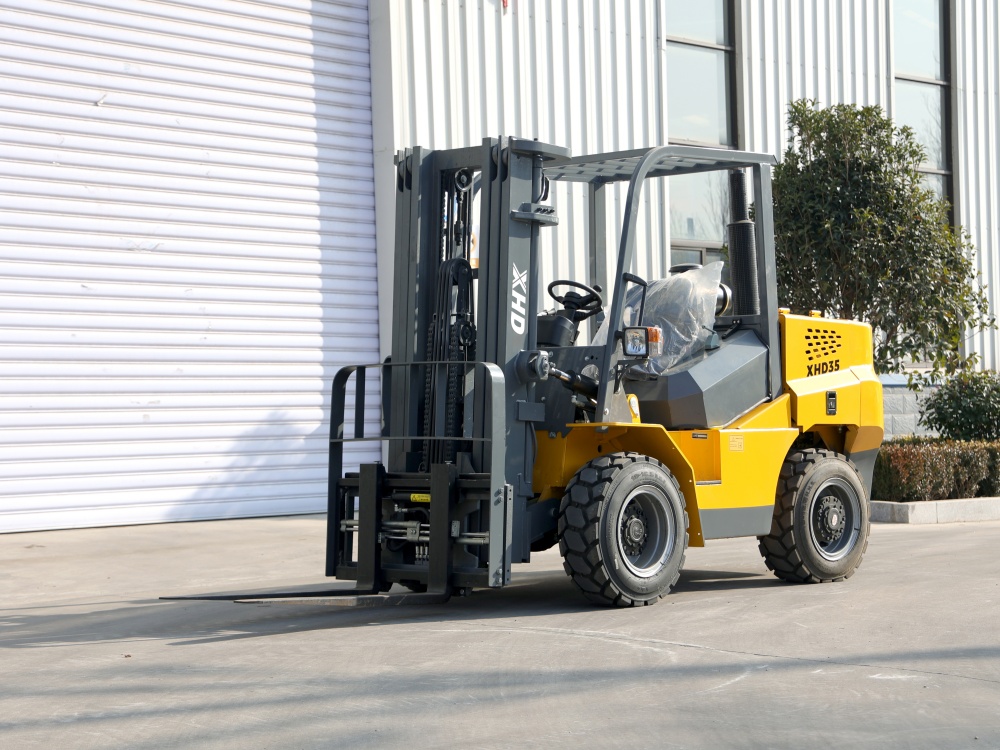

3.5 TON 4WD ALL-TERRAIN DIESEL FORKLIFT
All-Terrain Forklift are engineering vehicles that can safely and efficiently carry out loading, unloading, stacking, and handling operations on slopes and uneven surfaces. Like a balanced forklift, it can install forks or replace various attachments to improve operational efficiency, featuring Diesel engines designed for endurance in outdoor environments
Everything in the Standard Machine & Implements Package:Everything in the Standard Machine & Implements Package:
| Rated Lifting Weight | 3500KG |
| Rated Lifting Height | 4500mm |
| Fuel type | Diesel |
-
Easy to Operate in a Small Space
- All-Terrain Rubber Tyres
- 4WD
- Side Shiffork Adjustment
- Double High And Low Speeds Torque Converter
- Side Shift
- 3 Stage Container Mast
- 1 Year / 1000 Hours Warranty
- Australian-Backed Parts Support
- Extended Warranty Options Available for 2 /3 Years
Price: $35,990.00 Incl. GST
Dealer Costs not Included and May Vary.
Product Parameters
| Rated Lifting Weight | 3500KG |
| Rated Lifting Height | 4500mm |
| Fuel type | Diesel |
| Min. Turning Radius | 4200mm |
| Front End Clearance | 250-350mm |
| Max. Unloading Height | 3000-4500mm |
| Max.Grade Ability | 16°<35° |
| Ground Clearance | 280mm |
| Mast Front Clearance | 300mm |
| Wheelbase | 1697mm |
| Min.Turning Radius | 4200mm |
| Engine Model | YUNNEI /CUMMINS /XICHAI |
| Engine Power | 54.5KW/55KW/55KW |
| Drive Mode | Four -wheel drive |
| Wheel Tires | Inflatable tires |
| Overall Weight | 5000KG |
| Dimensions | 3238*1500*2380mm |
